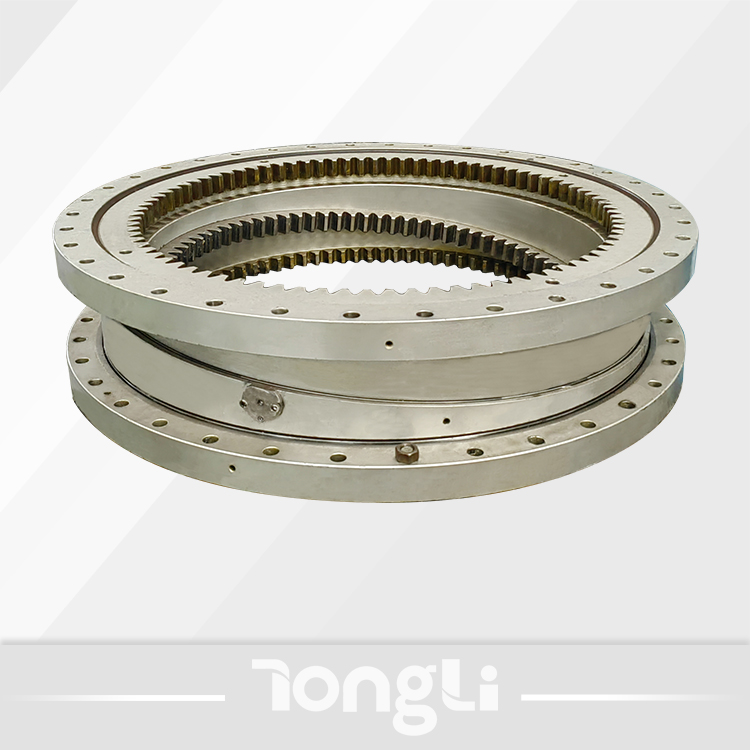

Gyro Turntable

2023/7/13

Gyro turntable is a new product applied in aerial ladder fire trucks, mountain excavators, marine radars, and other fields. Tongli slewing ring holds full independent intellectual property rights and enables intelligent stepless leveling on slopes with up to ±10° inclination.

Parameter Table


产品型号

斜滚道中心直径

钢球直径

调平角度

ZQN*500.20

500mm

20mm

士10°

ZQN*630.20

630mm

20mm

士10°

ZQN*800.20

800mm

20mm

士10°

ZQN*1000.25

1000mm

25mm

士10°

ZQN*1250.32

1250mm

32mm

士10°

ZQN*1600.40

1600mm

40mm

士10°

ZQN*2000.50

2000mm

50mm

士10°

ZQN*2500.60

2500mm

60mm

士10°
